Aspirating Smoke Detection

Safeguarding your spaces with early & reliable smoke detection

What is Aspiration/Air Sampling  Smoke Detection (ASD)?

Air samples taken from monitored area using a pipe system with defined aspiration apertures and supplied to detection chamber.

Pipe system – 25mm OD smooth bore pipe with at least 2mm wall thickness – Plastic or Metal as per application

What is Aspiration/Air Sampling  Smoke Detection (ASD)?

Active Smoke Detection
Highly Sensitive – Detection of fire in initial stage
Best immunity against false alarms & nuisance alarms
Asset & Personnel safety
Robust & Reliance – Effective detection even in challenging environments
Easy to maintain
Improved Aesthetics
Modular – cost effective customized solution as per customer & application requirements

Applications of Titanus ASD

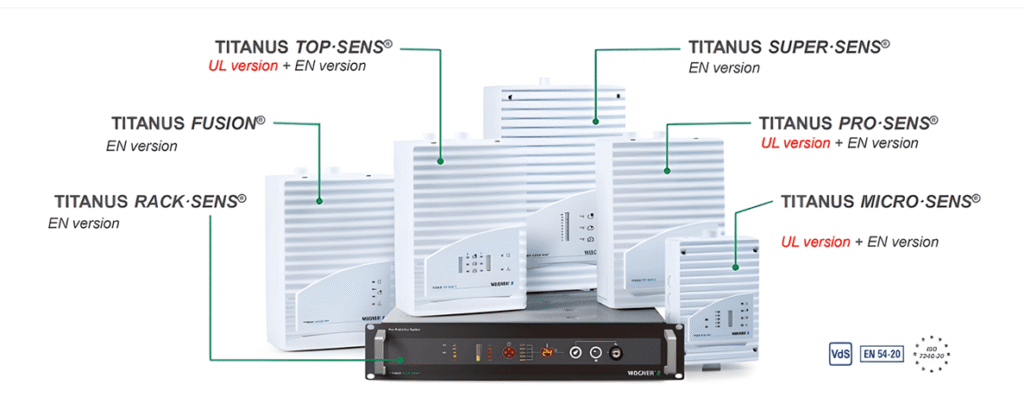

TITANUS® family – Brief introduction

TITANUS® family: International approvals

TITANUS® ASD – What is inside?

TITANUS® ASD – Fire Alarm, BMS Integration & Cross Zoning Detection Technology

General information

Detection using High-Power  Light Source (HPLS)

General information

Main alarm sensitivity as sensitive as 0.015% obs/m
Response sensitivity as sensitive as 0.0015% obs/m
High efficiency (approx. 80%) i.e. high luminous efficacy, low power consumption, low heat generation
Wide temperature range from −40 to +60 °C
Robust and durable

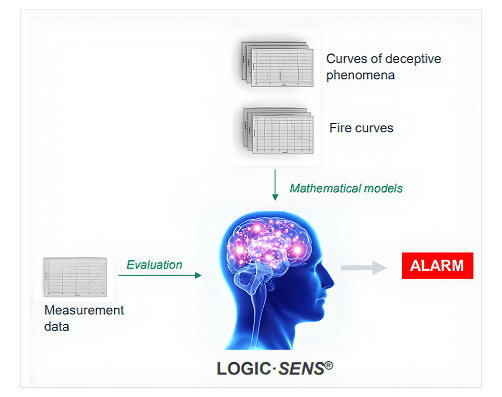

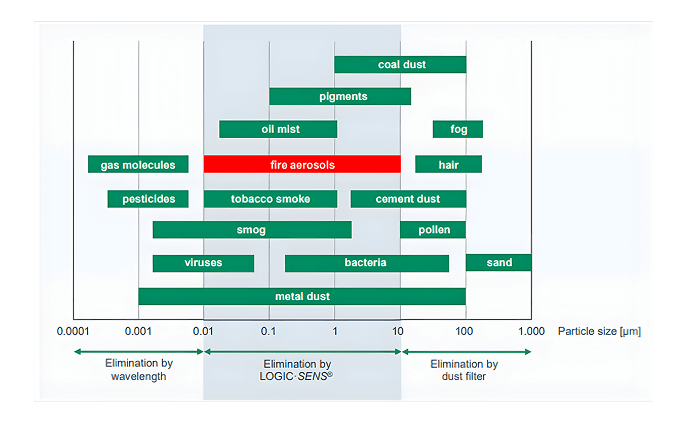

Fire Pattern Analytics

LOGIC·SENS®

Fire Pattern Detection Airflow monitoring

PIPE·GUARD: the safety package

Patented airflow monitoring
Microprocessor-controlled temperature compensation
Automatic airflow initialization at the push of a button
Air pressure-dependent airflow adjustment for maximum safety against airflow disturbances
Detection of changes in the pipeline: sabotage, blockage, pipe crushes, pipe burst
… adjustable up to +/− 10% airflow change and/or single sampling point monitoring

Why ASD?

Beyond the boundaries of other technologies

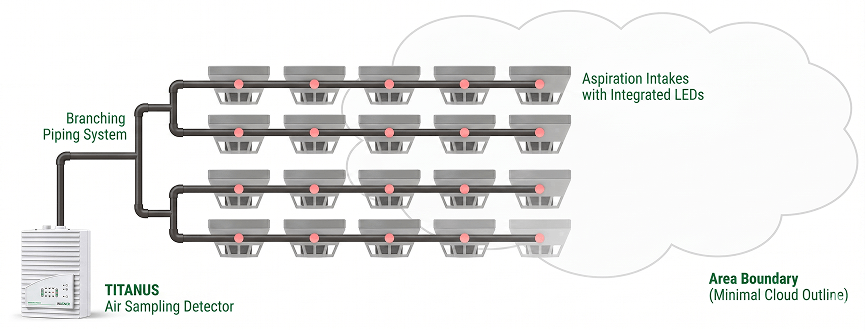

Multiplied sensitivity thanks  to the cumulative effect

Time saving due to earliest  possible fire detection

TITANUS® ASD – Key Features  & Advantages

Detection technology using highly efficient High-Power Light Source – Balanced detection of smouldering and open fires
Highly sensitive with lowest configurable sensitivity of 0.005% obs/m
Ultra sensitive model with lowest response sensitivity of 0.0006% obs/m
Specially developed patented design of detection chamber against deposits & contamination to maintain sensitivity throughout the life of the ASD
Patented fire pattern analytics, LOGIC-SENS to distinguish between real fire events and other non-fire events – Very high immunity against false alarms
Patented accurate air-flow monitoring, PIPE-GUARD – Air pressure dependent airflow adjustment for maximum safety against air-flow disturbances
Fully modular architecture with field replaceable components (Detection Chamber, mother board, Aspirator etc.)
